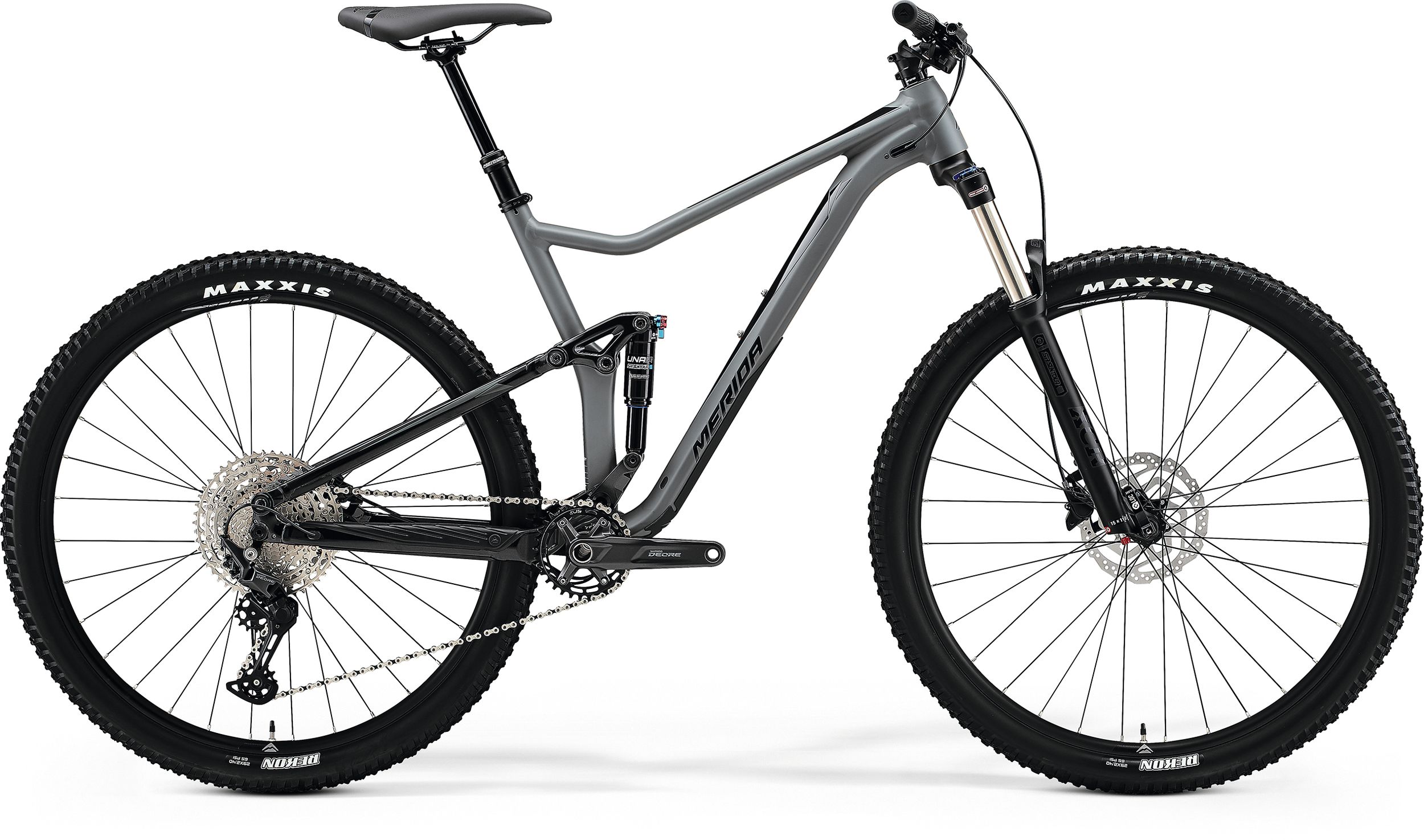

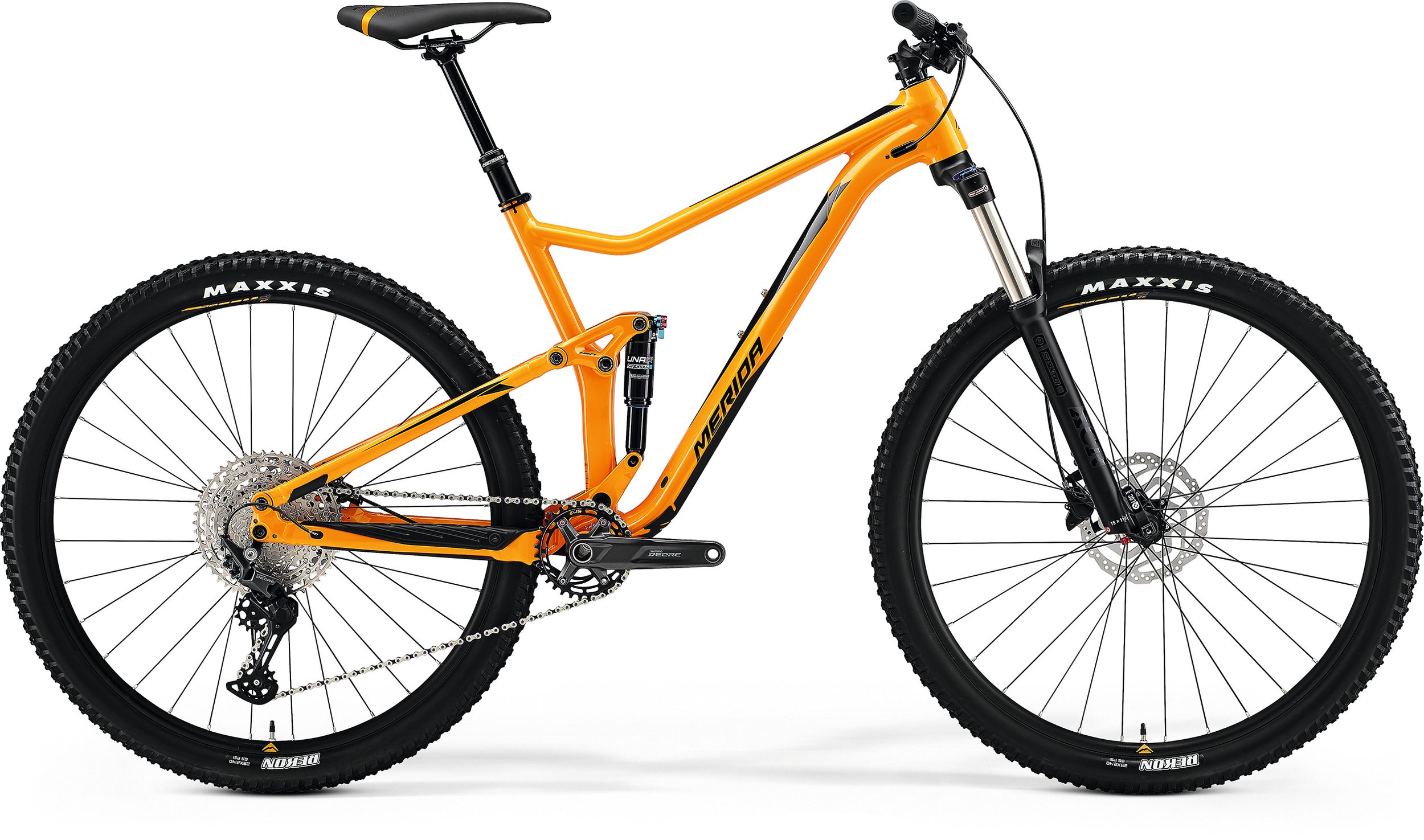

ש"מ אלומיניום שבילים New MERIDA ONE-TWENTY 400

FRAME ONE-TWENTY LITE

• 120mm suspension travel
• material: aluminium
• 29 wheelsize
• 148x12mm axle standard
• BB92 bottom bracket standard

FRAME SIZE S, M, L, XL

COLOR MATT GREY/GLOSSY BLACK

FORK SR Suntour XCR34 LOR

• Air
• 130mm suspension travel
• Tapered
• lockout
• 51mm fork offset

SHOCK SR Suntour Unair TR LOR8

• lockout

BRAKES Tektro M275

• 2 piston

ROTORS Shimano RT10

• 180 mm

HEADSET FSA NO.47/50

HANDLEBAR MERIDA EXPERT CC

• material: aluminium
• 740mm width
• 10mm rise

HANDLEBAR STEM MERIDA COMP CC

• material: aluminium
• 31.8mm diameter
• 7° stem angle
• 60 mm

GRIP MERIDA COMP EC

DERAILLEUR (R) Shimano Deore M5100 Shadow+

• SGS

SHIFTERS Shimano SL -MT500-L / Shimano Deore M5100

SEAT POST MERIDA COMP TR

• 30.9mm diameter
• 0mm setback
• S: 100mm travel seatpost - M: 125mm travel seatpost - L/XL: 150mm travel seatpost

SEAT CLAMP MERIDA EXPERT

SADDLE MERIDA COMP SL

• V-mount

CHAIN KMC X11

CRANK Shimano Deore M5100

• 32 teeth
• 170 mm-S, 175 mm-M up

FREEWHEEL Shimano Deore M5100

• 11-51 teeth
• 11 speed

BOTTOM BRACKET Shimano MT500-PA pressfit

HUBS Shimano MT400-B

• 110x15mm width front hub
• 32 spoke holes
• Centerlock
• 148x12mm width rear hub
• 32 spoke holes
• Centerlock

RIM MERIDA COMP CC

• 20mm inner width
• material: aluminium

TYRE FRONT Maxxis Rekon

• 29x2.4"
• wire

TYRE REAR Maxxis Rekon

• 29x2.4"
• wire

AXLES MERIDA COMP TR

• including removeable lever, 6 allen key

SPOKES Black stainless

MAX. WEIGHT 135 kg

MANUAL Downloads

-

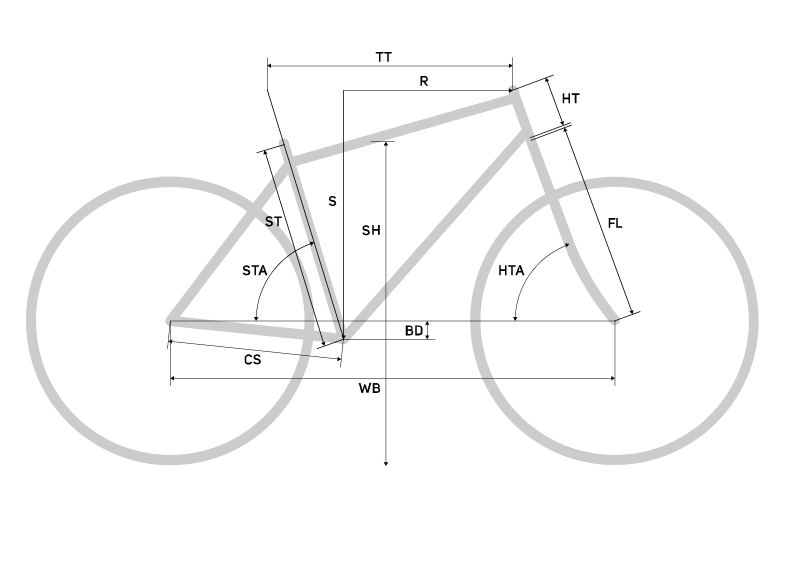

FRAME SIZE    S    S    M    M    L    XL
TYRE SIZES    27.5"    29"    27.5"    29"    29"    29"
ST SEAT TUBE [MM]    400    400    440    440    480    520
TT TOP TUBE [MM]    571    572    593    592    614    637
CS CHAIN STAY LENGTH [MM]    430    435    430    435    435    435
HTA HEAD TUBE ANGLE [°]    66.8    67.3    66.8    67.3    67.3    67.3
STA SEAT TUBE ANGLE [°]    75    75.5    75    75.5    75.5    75.5
BD BOTTOM BRACKED DROP [MM]    21    40    21    40    40    40
HT HEAD TUBE [MM]    105    95    115    95    105    115
FL FORK LENGTH [MM]    522    541    522    541    541    541
R REACH [MM]    415    415    435    435    455    475
S STACK [MM]    581    607    590    607    616    626
WB WHEEL BASE [MM]    1130    1141    1154    1161    1185    1208
SH STAND OVER HEIGHT [MM]    698    707    726    730    759    787
