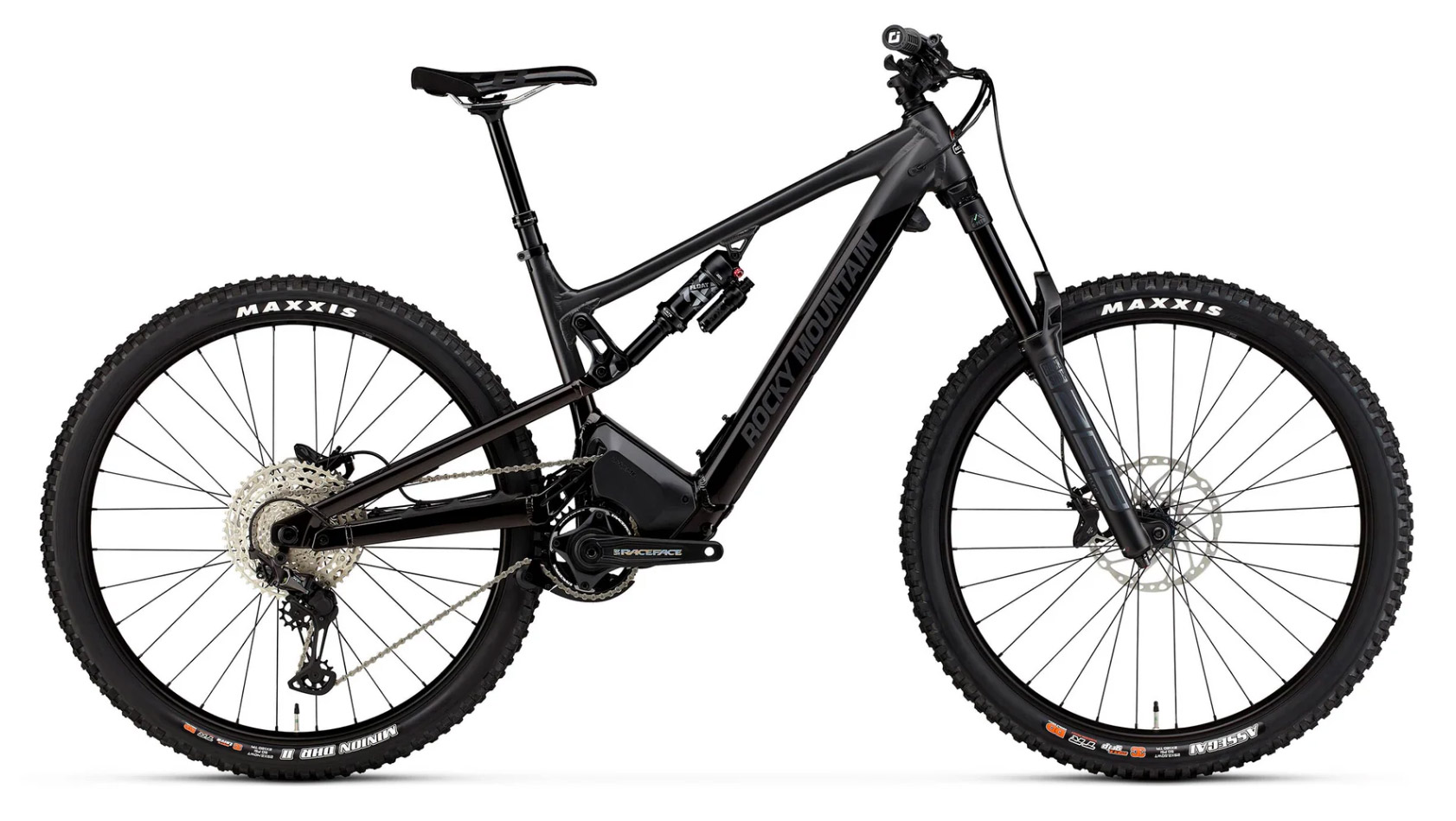

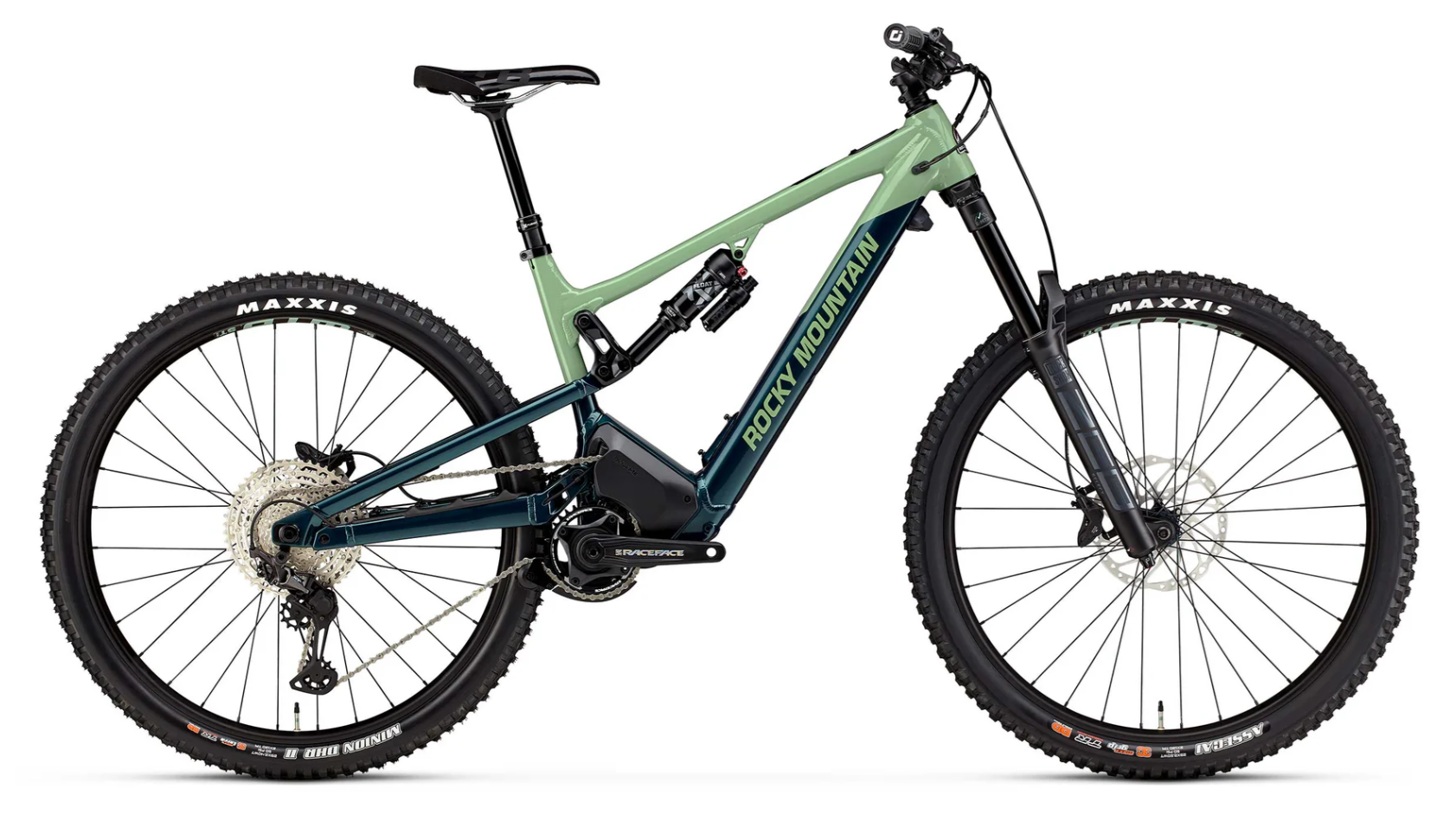

ROCKY MOUNTAIN ALTITUDE A70 Power Play

• Frame

  FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry + Suspension Rate | 160mm Travel. FORM™ Alloy Rear Triangle

• Fork

  Fox 38 Float EVOL GRIP Performance Series 170mm | 44mm Offset

• Front Travel

  170mm

• Shock

  Fox Float X Performance | Sealed Bearing Eyelet | 25x8mm F Hardware | All Sizes = 230x62.5mm | Size-Specific tune in FAQ

• Rear Travel

  160mm

• Headset

  FSA Orbit NO.57E | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

• Stem

  Rocky Mountain 35 AM | 5° Rise | All Sizes = 40m

• Handlebar

  Rocky Mountain AM | 780mm Width | 38mm Rise | 9° Backsweep | 5° Upsweep | 35 Clamp

• Grips

  ODI Elite Pro Lock On

• Brakes

  Shimano XT Trail 4 Piston | Metal Pads | F:Shimano RT66 203mm | R:Shimano RT66 203mm

• Shifters

  Shimano XT

• Rear Derailleur

  Shimano XT

• Cranks & Chainring

  Race Face Aeffect Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm

• Bottom Bracket

  Shimano SM-BBMT500

• Cassette

  Shimano Deore 10-51T 12spd

• Chain

  Shimano M6100

• Front Hub

  Rocky Mountain Sealed Boost 15mm

• Rear Hub

  DT Swiss Hybrid 370 Boost 148mm | 18T Star-Ratchet

• Spokes

  F : DT Swiss Champion 2.0 | R : DT Swiss Alpine 2.3/2.0

• Rims

  WTB ST i30 TCS 2.0 Tubeless | 32H | Tubeless Ready - Tape / Valves Incl

• Tires

  F: Maxxis Assegai 2.5 WT 3C MaxxGrip DD Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra DD Tubeless Ready

• Seatpost

  Race Face Aeffect R Dropper 30.9mm | Shimano MT500 Remote | SM = 125mm | MD = 150mm | LG - XL = 175mm

• Saddle

  WTB Volt Race 142

• Drive System

  Dyname 4.0 Mountain Bike Drive | 250w Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

• Battery

  720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)

• Remote

  Rocky Mountain Micro Remote

• Display

  Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

• Charger

  Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)

• Weight

  This information isn't available yet. We will update the weight of this model as soon as possible.

• Notes

  We make every effort to ensure accuracy, but reserve the right to update specifications & prices without notification.

גיאומטריה לפי 4 אפשרויות של מנגנון RIDE-4

קישור לאתר - הקליקו כאן

הורד הוראות שימוש - הקליקו כאן

Technologies

Dyname™ 4.0

At the heart of our new Powerplay lineup is the all-new Dyname 4.0 drive system, that comes with a series of improvements and refinements from its previous generation.

Learn more

RIDE-4™ adjustment system

The RIDE-4 adjustment system allows riders to quickly fine-tune their geometry with a single Allen key. Four configurations are possible thanks to one rotating chip.

Learn more

Two-position axle

The Altitude and Instinct frames, in both alloy and carbon, are equipped with a two-position axle dropout.

Learn more

Knowledge base

Find out all critical dimensions and key standards.

Learn more
