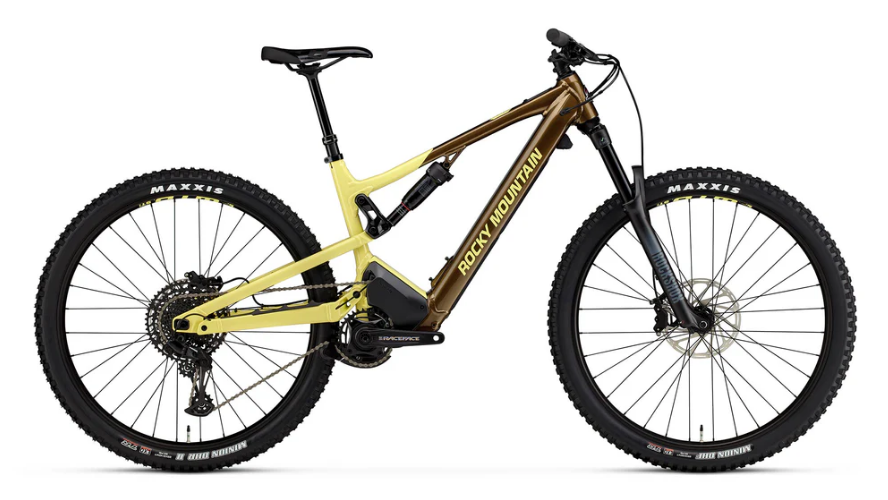

ROCKY MOUNTAIN INSTINCT A30 Power Play

• Frame

  FORM™ Alloy | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-9™ Adjustable Geometry + Suspension Rate | 140mm Travel. FORM™ Alloy Rear Triangle

• Fork

  RockShox 35 Gold RL 150mm | 44mm Offset

• Front Travel

  150

• Shock

  RockShox Deluxe Select R | Sealed Bearing Eyelet | 20x8mm F Hardware | All Sizes = 210x55mm | Size-Specific tune in FAQ

• Rear Travel

  140

• Headset

  FSA Orbit NO.57E ZS44|56 | Sealed 36°x45° Bearings | 30.2mm x 41mm x 7.1mm Upper | 40mm x 51.8mm x 7.5mm Lower | 1.5" Crown Race

• Stem

  Rocky Mountain 31.8 AM | 5° Rise | All Sizes = 40mm

• Handlebar

  Rocky Mountain AM | 780mm Width | 25mm Rise | 9° Backsweep | 5° Upsweep | 31.8 Clamp

• Grips

  Rocky Mountain Lock On Light

• Brakes

  Sram DB8 4 Piston | Metal Pads

• Shifters

  Sram SX Eagle

• Rear Derailleur

  Sram SX Eagle

• Cranks & Chainring

  Race Face Ride Cinch 34T | 24mm Spindle | Crank Length: SM - MD = 165mm | LG - XL = 170mm

• Bottom Bracket

  Race Face BB92 24mm

• Cassette

  Sram PG-1210 11-50T

• Chain

  Sram SX Eagle. E-MTB Aprroved.

• Front Hub

  Rocky Mountain SL Sealed Boost 15mm

• Rear Hub

  Novatec E-MTB SL Team Boost 148mm

• Spokes

  2.0 Stainless

• Rims

  WTB ST i30 TCS 2.0 Tubeless | 32H / Tubeless Ready - Tape / Valves Incl

• Tires

  F: Maxxis Minion DHF 2.5 WT EXO Tubeless Ready // R: Maxxis Minion DHR II 2.4 WT EXO Tubeless Ready //

• Seatpost

  X Fusion Manic Composite 30.9mm | SM = 125mm | MD = 150mm | LG = 170mm | XL = 200mm

• Saddle

  WTB Volt 142

• Drive System

  Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

• Battery

  720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)

• Remote

  Rocky Mountain Micro Remote

• Display

  Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

• Charger

  Rocky Mountain Powerplay Charger V1| 2A | 48V | Higo Deep Socket Connector | Overtimepack Compatible (Dyname 4)

• Weight

  54.89|24.95 KGS

בהתאם לבחירת הכיול שבמנגנון ה RIDE-9™

Drive System

Dyname 4.0 Mountain Bike Drive | 700W Max Power | 250W Nominal Power | 108Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System

Battery

720 Wh Removable Integrated Li-Ion | 100% Charged in 3:55 (4A) / 7:35 (2A) | 80% Charged in 2:55 (4A) / 6:05 (2A)

Remote

Rocky Mountain Micro Remote

Display

Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

Designed in Canada
