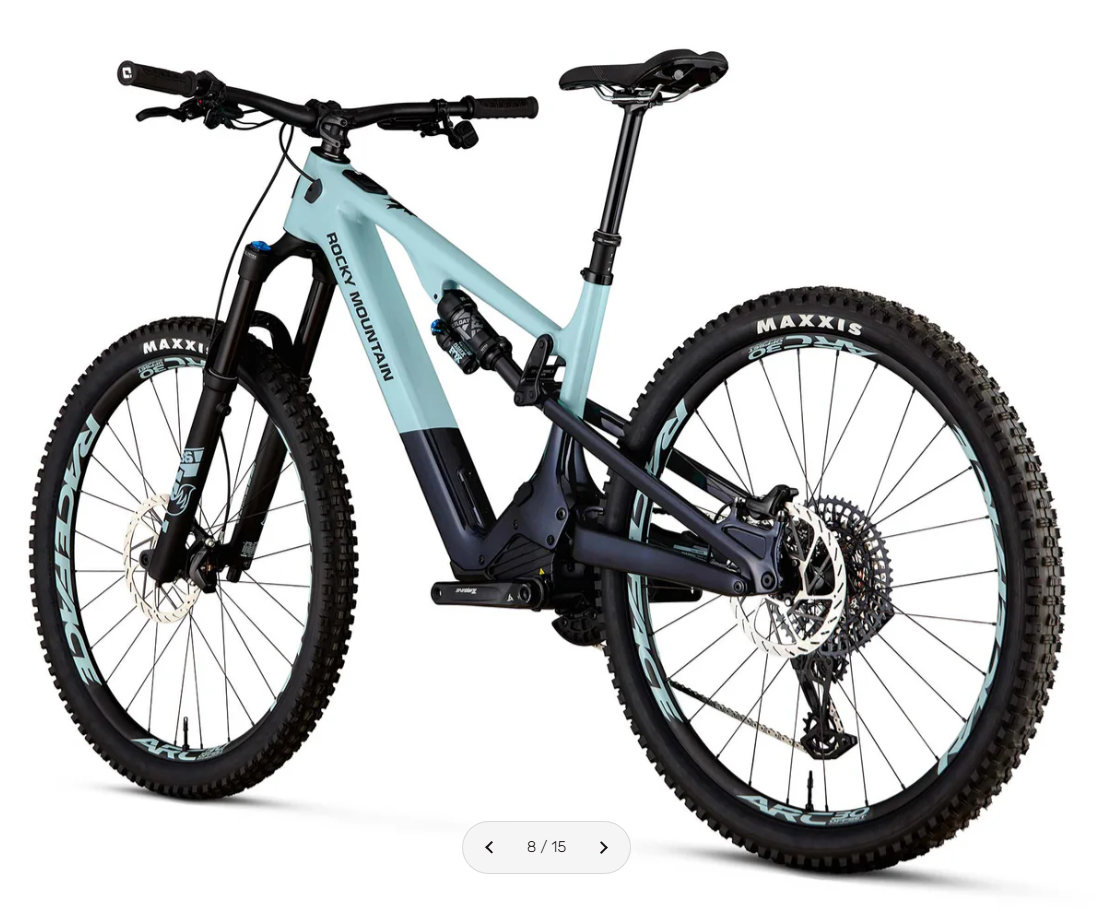

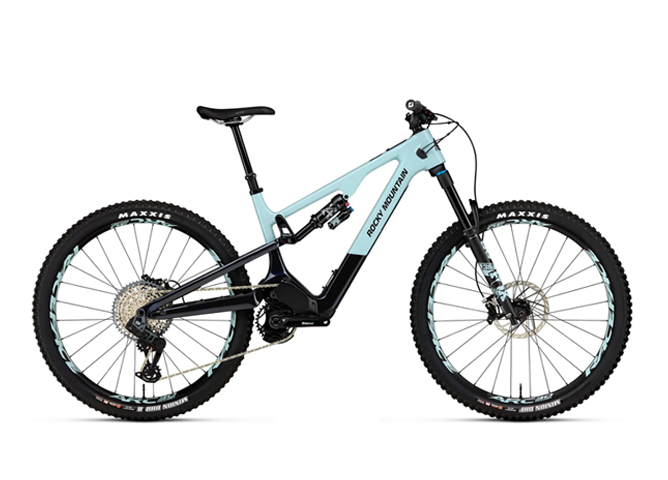

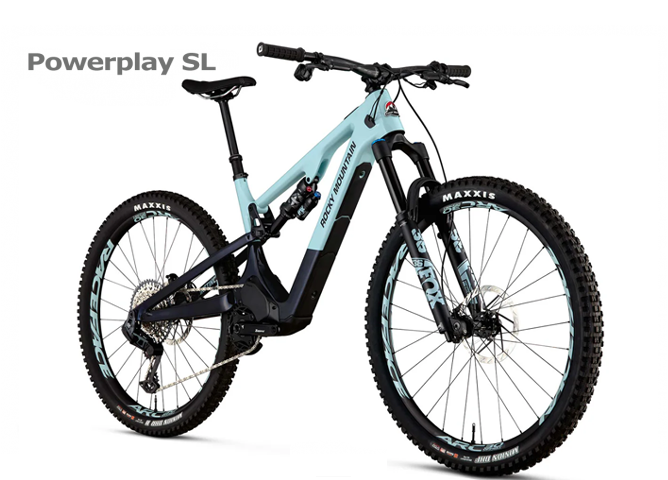

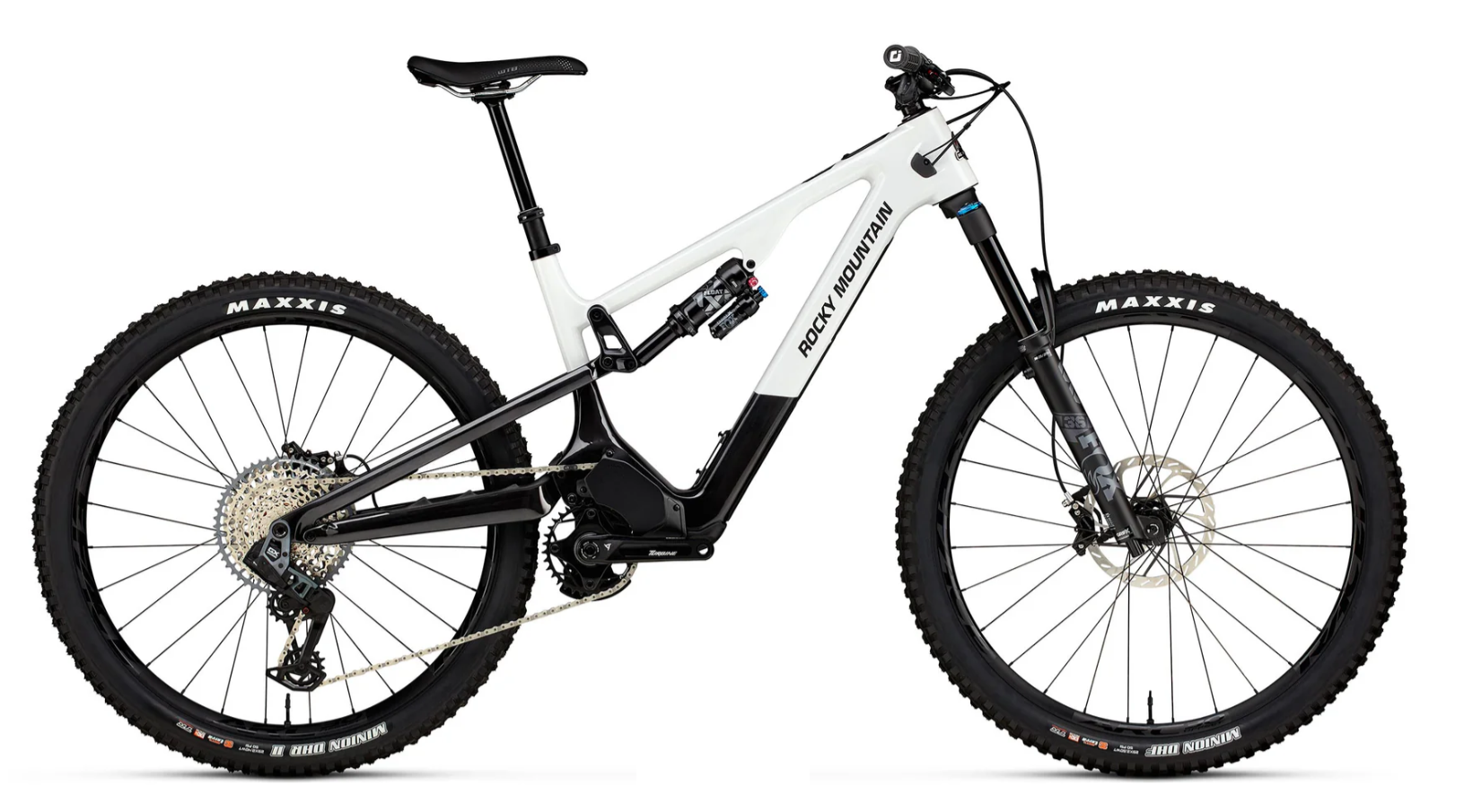

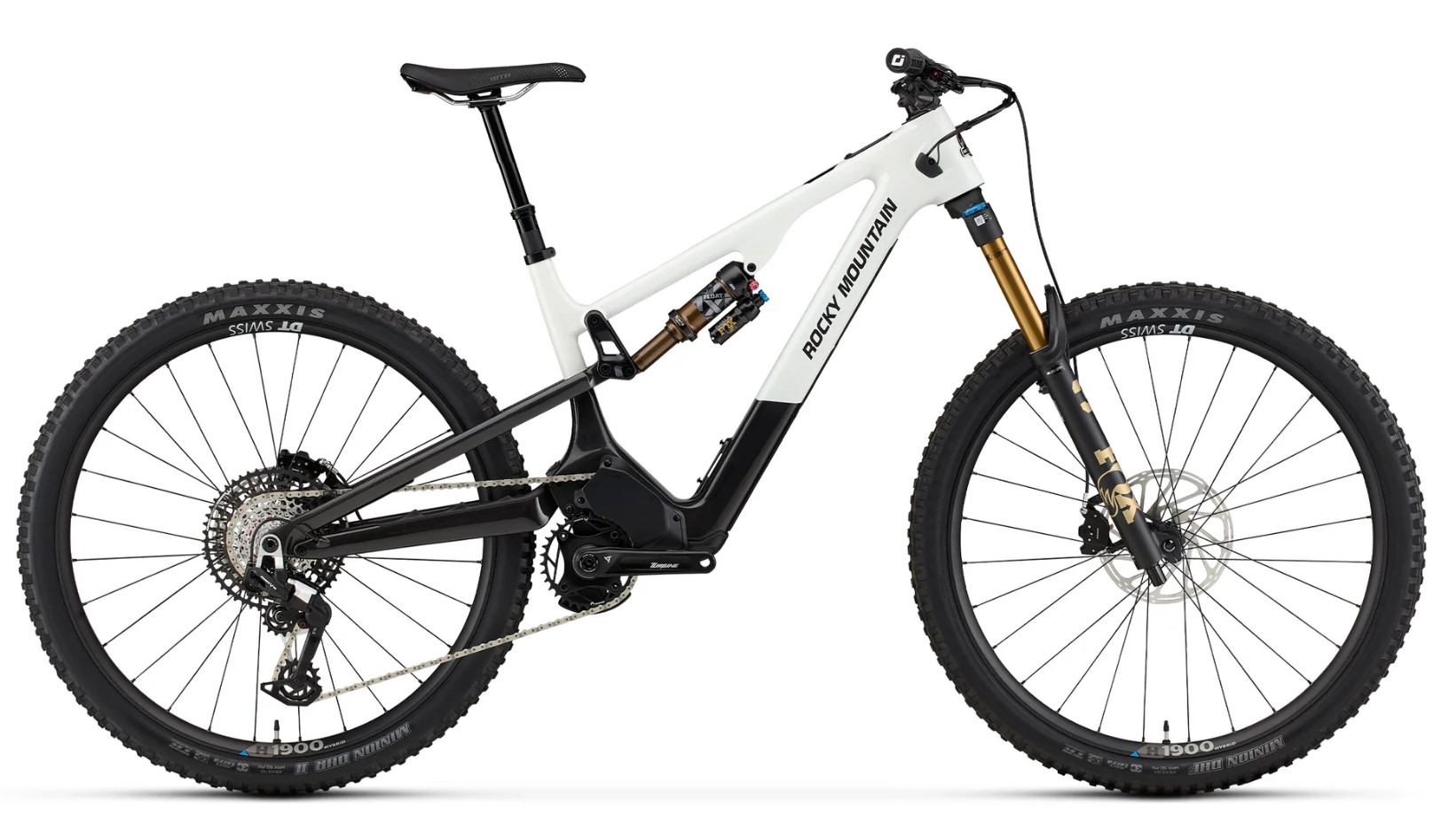

ROCKY MOUNTAIN INSTINCT Carbon SL C70 e-MTB

• Frame

  SMOOTHWALL™ Carbon | Integrated Display | Mid-High Pivot Smoothlink Suspension System | Press Fit BB | RIDE-4™ Adjustable Geometry | 145mm Travel | SMOOTHWALL™ Carbon Rear Triangle

• Fork

  Fox 36 Float EVOL GRIP X Factory Series 160mm | 44mm Offset

• Front Travel

  160

• Shock

  SM-XL: Fox Float X Factory Series | 230x60mm | XS: Fox Float Factory Series | 210x55mm | Sealed Bearing Eyelet | 25x8mm F Hardware | Size-Specific tune in FAQ

• Rear Travel

  150

• Headset

  FSA Orbit NO.85 Reach Adjust | 0mm Cups Installed | +/- 5mm Cups Included | Sealed Stainless 36°x45° Bearings | 30.2mm x 41mm x 6.5mm Upper | 40mm x 51.8mm x 8.0mm Lower | 1.5" Crown Race

• Stem

  Race Face Aeffect R | 0° Rise | All Sizes = 40mm

• Handlebar

  Race Face Turbine | XS = 760mm | SM - XL = 780mm Width | 20mm Rise | 8° Backsweep | 5° Upsweep | 35mm Clamp

• Grips

  ODI Elite Pro Lock On

• Brakes

  Sram Maven Silver Stealth 4 Piston | Metal Pads

• Shifters

  Sram Eagle 90 Transmission Single Click

• Rear Derailleur

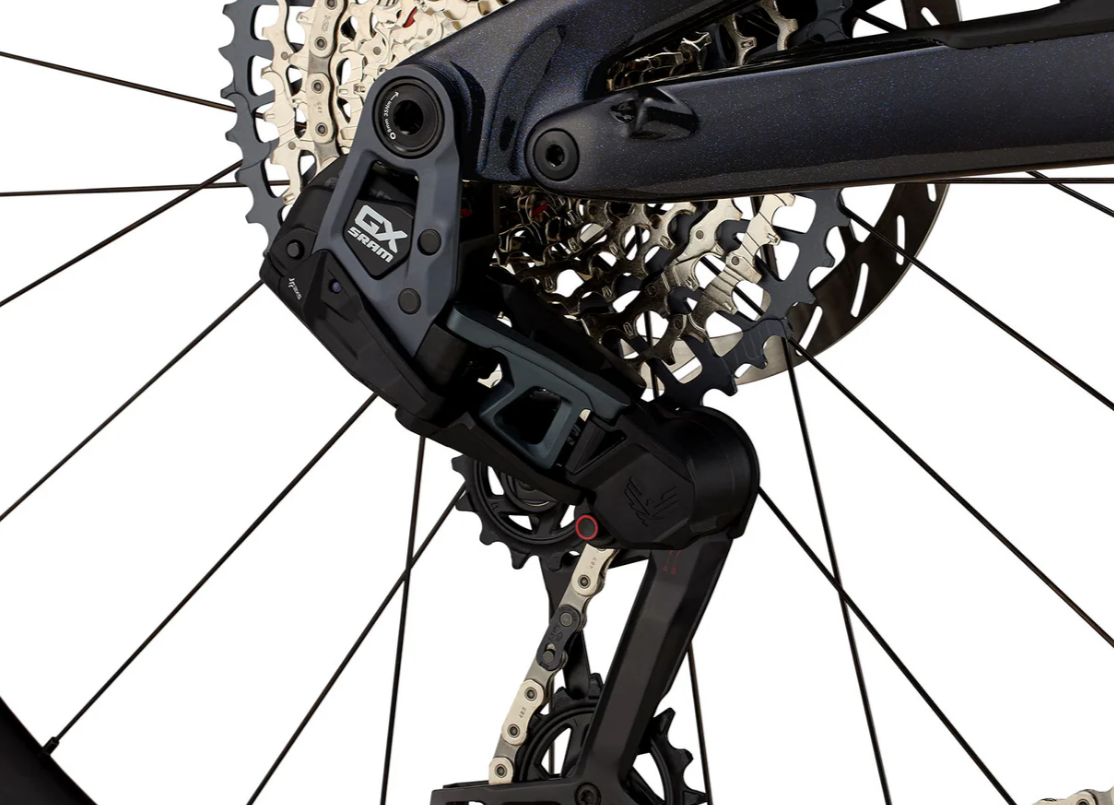

  Sram Eagle 90 Transmission

• Cranks & Chainring

  Race Face Turbine Cinch | 34T Transmission Ring | 30mm Spindle | XS - XL = 165mm

• Bottom Bracket

  Race Face BB92 30mm

• Cassette

  Sram GX Eagle Transmission 10-52T

• Chain

  Sram GX Eagle Transmission

• Front Hub

  DT Swiss H1900 | 370 SPLINE Boost 15mm

• Rear Hub

  DT Swiss H1900 | 370 HYBRID SPLINE Boost 148mm | Steel Freehub | 18T Ratchet LN

• Spokes

  DT Swiss H1900 | Hybrid 1 Straight Pull

• Rims

  DT Swiss H1900 | M532 Rim | 30mm Width | 28H

• Tires

  F: Maxxis Minion DHF 2.5 WT 3C MaxxTerra EXO+ Tubeless Ready | R: Maxxis Minion DHR II 2.4 WT 3C MaxxTerra EXO+ Tubeless Ready

• Seatpost

  OneUp V3 Dropper 30.9mm | XS = 120 | SM = 150mm | MD = 180mm | LG = 210mm | XL = 240mm

• Saddle

  WTB Volt Fusion Form 142 | Cromoly Rails

• Drive System

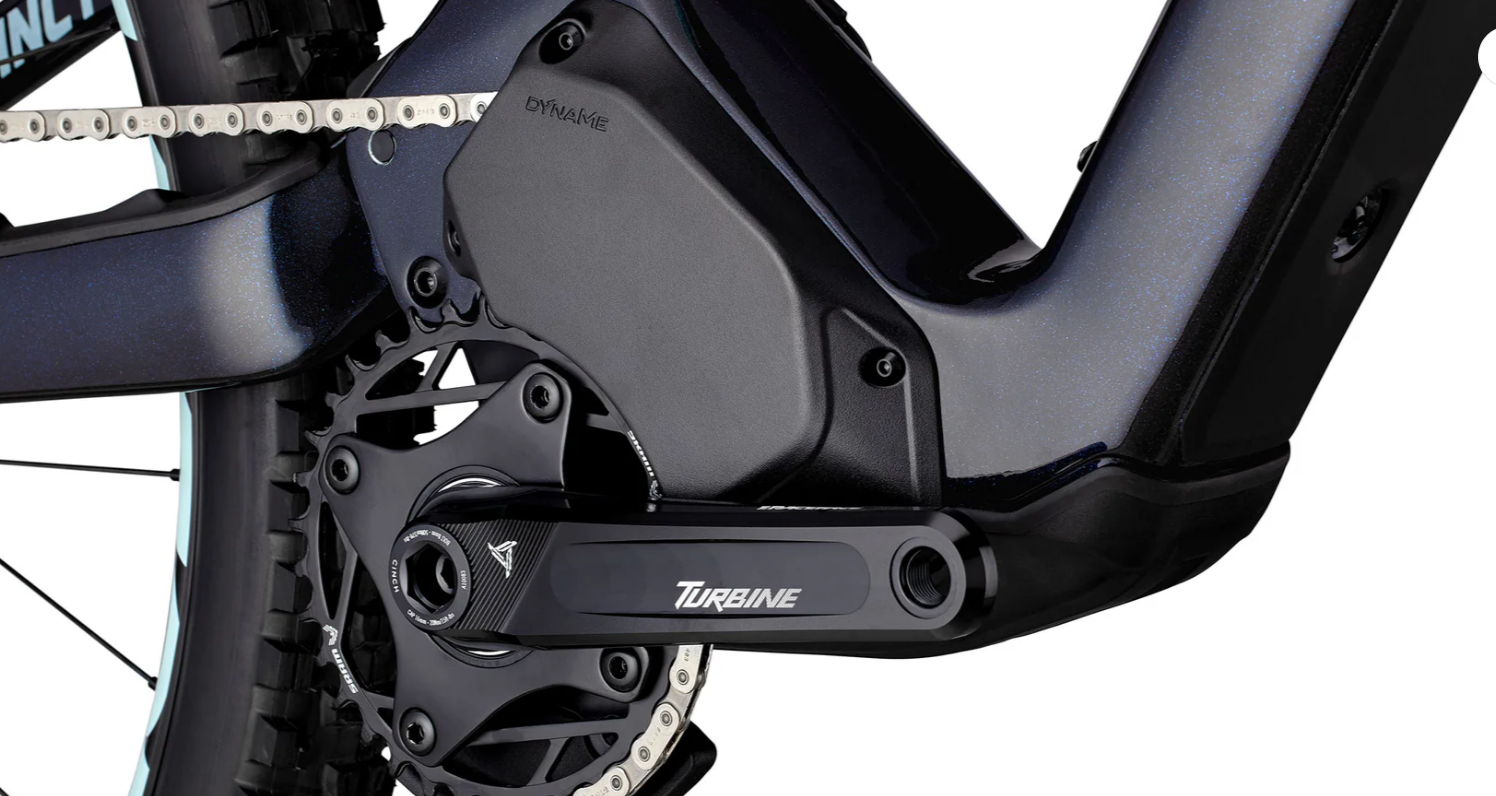

  Dyname S4 Lite Mountain Bike Drive | 250w Nominal Power | 700w Max Power | 75Nm | Rocky Mountain Micro Remote | Low RPM - High Efficiency class 1 eMTB System | Designed in Canada

• Battery

  480 Wh Removable Integrated Li-Ion

• Remote

  0

• Display

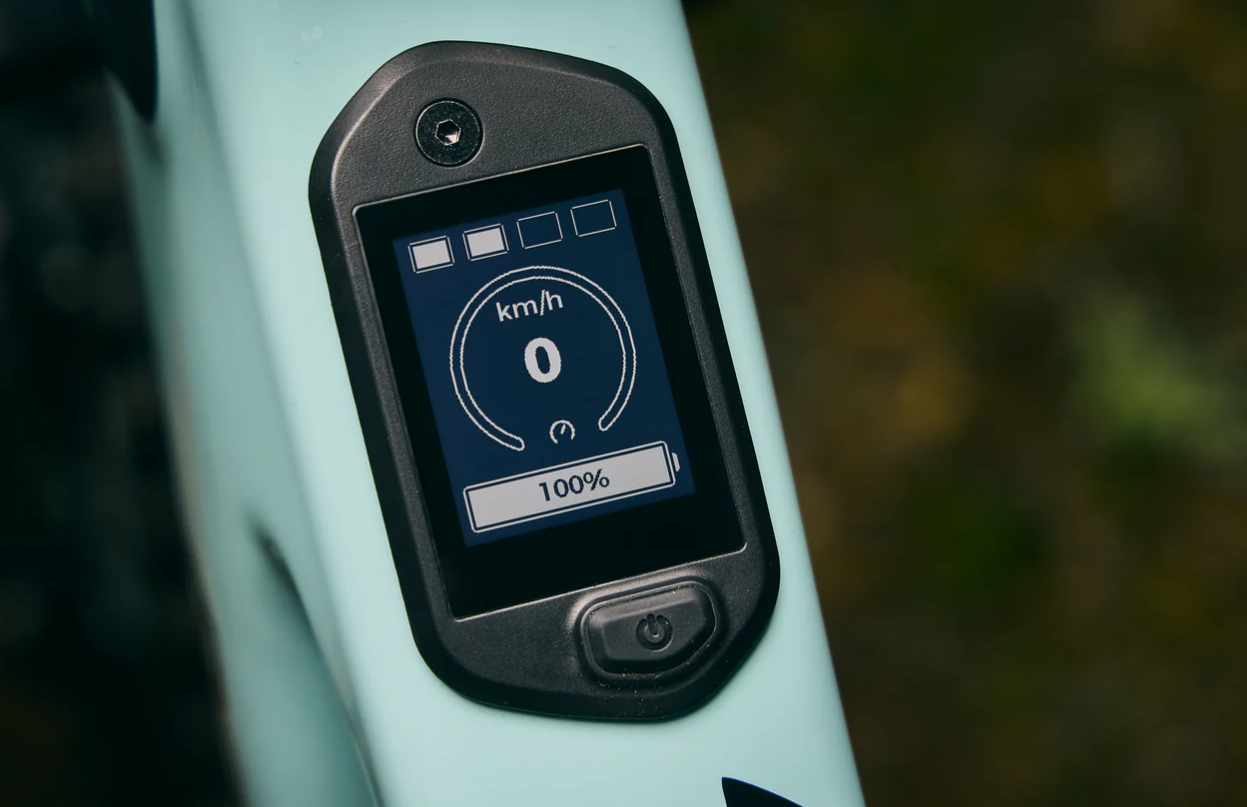

  Rocky Mountain Jumbotron | Drive System Customization | Battery & Assist Level | Trip | Speed | Cadence | Top Tube Integration

• Charger

  Rocky Mountain Powerplay FAST Charger | 4A | 48V | Higo Deep Socket Connector

• Weight

  0

למידע על הגיאומטריה לפי מנגנון ה RIDE-4  - קישור
